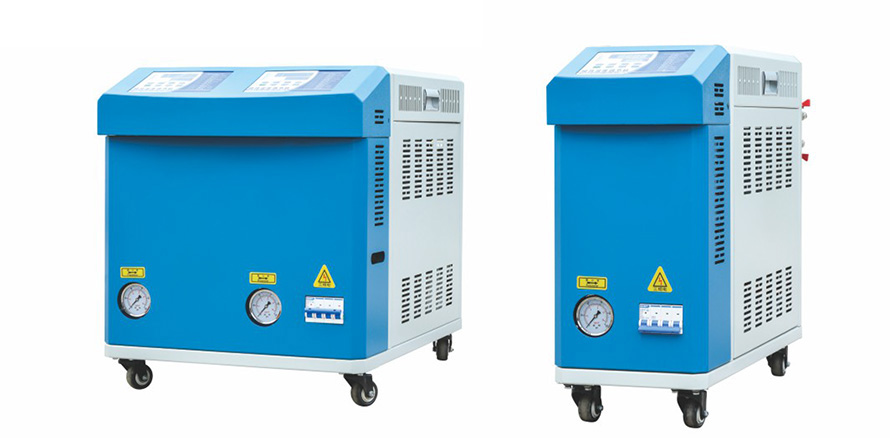

自動模具溫度控制機
產品特點（(FEATURES)
●壹電牌系列自動模具恒溫機采用最先進電子數控原理;
●采用多組發熱管，使油缸溫度平均穩定、省時、省電;備有缺油及超溫，水泵過載之.自動警示系統，回路自動切斷，確保安全;
●采用精確溫度控制器及獨立冷卻器，使溫度更加穩定。
●Taidian brand automatic mold thermostat adopts the most advancedelectronic numerical control principle.
●The use of multiple sets of heating tubes makes the cylinder temperature stable.
●An automatic warning system with oil shortage and over-temperature warning, water pump overload warning is provided,and the circuit is automatically cut off to ensure safety.
The tempera
技術參數(Specification)：

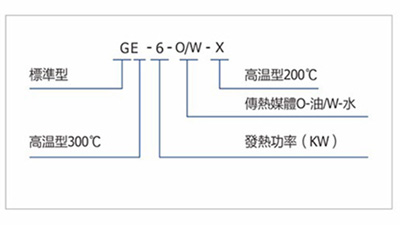

| 型號Model UNIT | GE-6-0/W | GE-9-O/W | GE-12-0/W |
| 傳熱媒體Meatingmedium | 油或水OilWater | 油或水OlWater | 油或水OlWater |
| 溫度范圍Temperatureoutput (C) | 0il160C/Water120C | Oil160C/Water120C | 0il160C/Water120C |
| 加熱功率Heatingcapacity (kw) | 6 | 9 | 12 |
| 泵浦功率Pumpoutput (kw) | 0.37 | 0.75 | 0.75 |
| 泵浦流量Pumpcapacity (L/min) | 60 | 68 | |
| 外形尺寸MeasurementLxWxH (mm) | 730x320x690 | 730x320x690 | 730x320x690 |
| 重量Weight/mass (kg) | 50 | 55 | 55 |
| 電源PowerOutput (Volt) | 3PHASE,380V,50HZ | 3PHASE,380V,50HZ | 3PHASE,380V,50HZ |
產品規格如有變更恕不另外通知！
