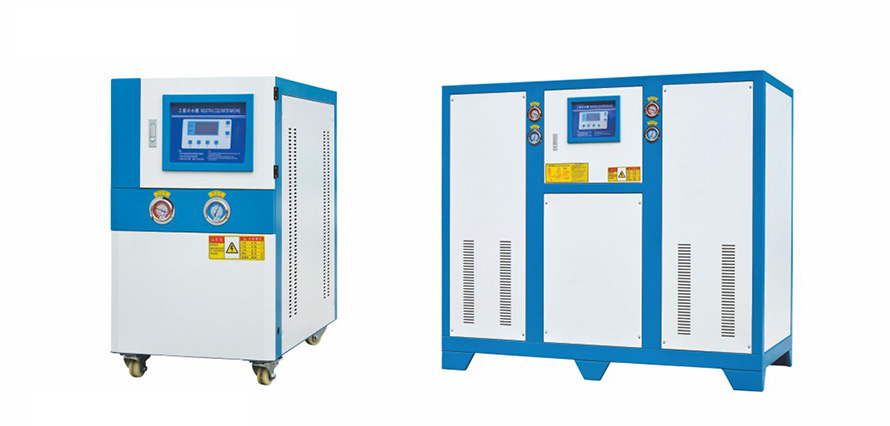

水冷式工業冷水機

零售價

0.0

元

市場價

0.0

元

瀏覽量:

1000

產品編號

所屬分類

注塑機周邊設備

數量

庫存:



產品描述

產品特點（(FEATURES)

●采用日本及歐美品牌壓縮機，意大利精密溫度控制器;.

●獨有全新設計之冷凝器及散熱器，換熱效能特佳;

●備有不銹鋼開放式水缸，清洗修護快捷;

●本機并裝有電流過程載保護，高低壓制及電子時間延遲等安全裝置;當發生故障時，及時發出警報及顯示故障原因。

●Uses Japanese and European brand compressors and Italiantemperature controllers.

●Fitted with copper coil for better ventilation.

●It is equipped with a stainless steel water tank for quick dleaningand repair.

●The machine is equipped with safety devices such as currentoverload protection, high and low voltage system and electronictime delay, when a fault occurs, the alarm will stop the machineand alet for repair.

技術參數(Specification)：

機型 Model	W-02GE	W-03GE	W-05GE	W-06GE	W-08GE	W-10GE	W-12GE	W-15GE
冷凍能力 Chilling output	9651 / 8300	10581 / 9100	45500 / 11460	61500 / 15500	84200 / 21210	91150 / 22960	121750 / 30667	162100 / 40831
水箱容量 TankcapacWaterity	55L	55L	55L	75L	145L	210L	210L	360L
水泵馬 Pump (horse power)	0.5HP	1HP	2HP
流量Flow rate	65L/MIN				100L/MIN		180L/MIN
外形尺寸 Measurements LxWxH (mm)	850x500x480	900x520x830	900x520x890	965x558x1079	970x640x1170	1168x711x1346		1524x711x1854
重量Weight/mass (kg)	138	138	138	190	330	300	355	650

機型 Model	W-20GE	W-25GE	W-30GE	W-40GE	W-50GE	W-6OGE	W-75GE	W-100GE
冷凍能力 Chillingoutput	237187/59745	282668/71200	348900/87884	512408/129070	608283/153220	731500/184256	881500/222040	1175500/296096
水箱容 Water tank capaity	510L	510L	510L	600L	780L	900L	1100L	14450L
水泵馬力Pump(horsepower)	3HP	3HP	5HP	7.5HP			10HP	10HP
流量Flowrate	450L/MIN	450L/MIN	800L/MIN	1000L/MIN			1100LMIN	1400L/MIN
外形尺寸 Measurements LxWxH (mm)	1879x762 x1879	1778x813x1879	1879x813x1879	1879x914x1931	1879x1041x1981	2083x1168x1930	2083x1168x1930	2134x2198x1931
重量Weight/mass (kg)	750	1050	1360	1390	1480	1450	1500	1800
